Custom Vessel Fuel Systems for a Commercial Fishing Fleet
Designed, built, and installed six custom fuel tanks in just 21 days to extend two commercial fishing vessels' range to distant Bering Sea fishing grounds.
The Challenge
A commercial fishing operator needed to extend the range of two vessels to reach distant Bering Sea fishing grounds — with only three weeks before the season opened. The tanks had to fit inside existing ballast tanks, survive constant salt-water and diesel exposure, and be fabricated from a novel coated fabric never before field-tested in such demanding conditions.
Our Solution
SaintX engineered six custom RF-welded fuel bladders — two 26,000-gallon tanks for one vessel and four 13,000-gallon tanks for the other — each uniquely shaped to its vessel's fill and discharge ports. Using a new salt-water and fuel-compatible coated fabric, the team designed, built, and installed all six tanks within the 21-day window and coordinated approval with the U.S. Coast Guard, then supported Dutch Harbor operations.
Results & Outcomes
- All six custom tanks designed, built, and installed in 21 days
- Extended vessel range to reach Bering Sea fishing grounds
- Increased fuel capacity and catch potential per voyage
- Coordinated U.S. Coast Guard approval and Dutch Harbor support
Project Details
- Client
- Commercial Fishing Fleet Operator
- Timeframe
- 1996
- Location
- Tacoma, WA & Dutch Harbor, AK
Similar Requirement?
Let's discuss how we can support your mission with the same precision and reliability.
Get in TouchShop Documentation
Built and Proofed Before It Ships

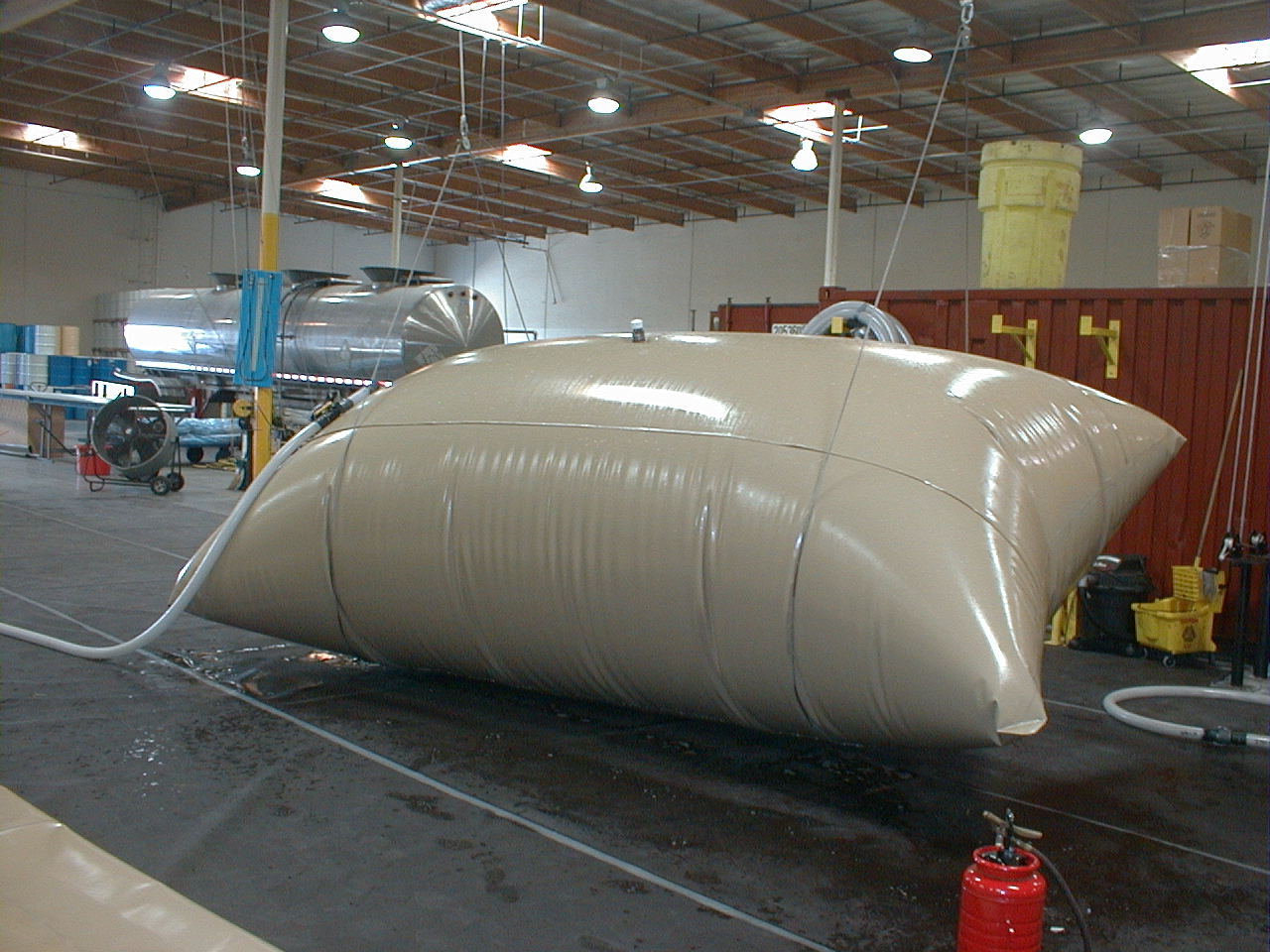

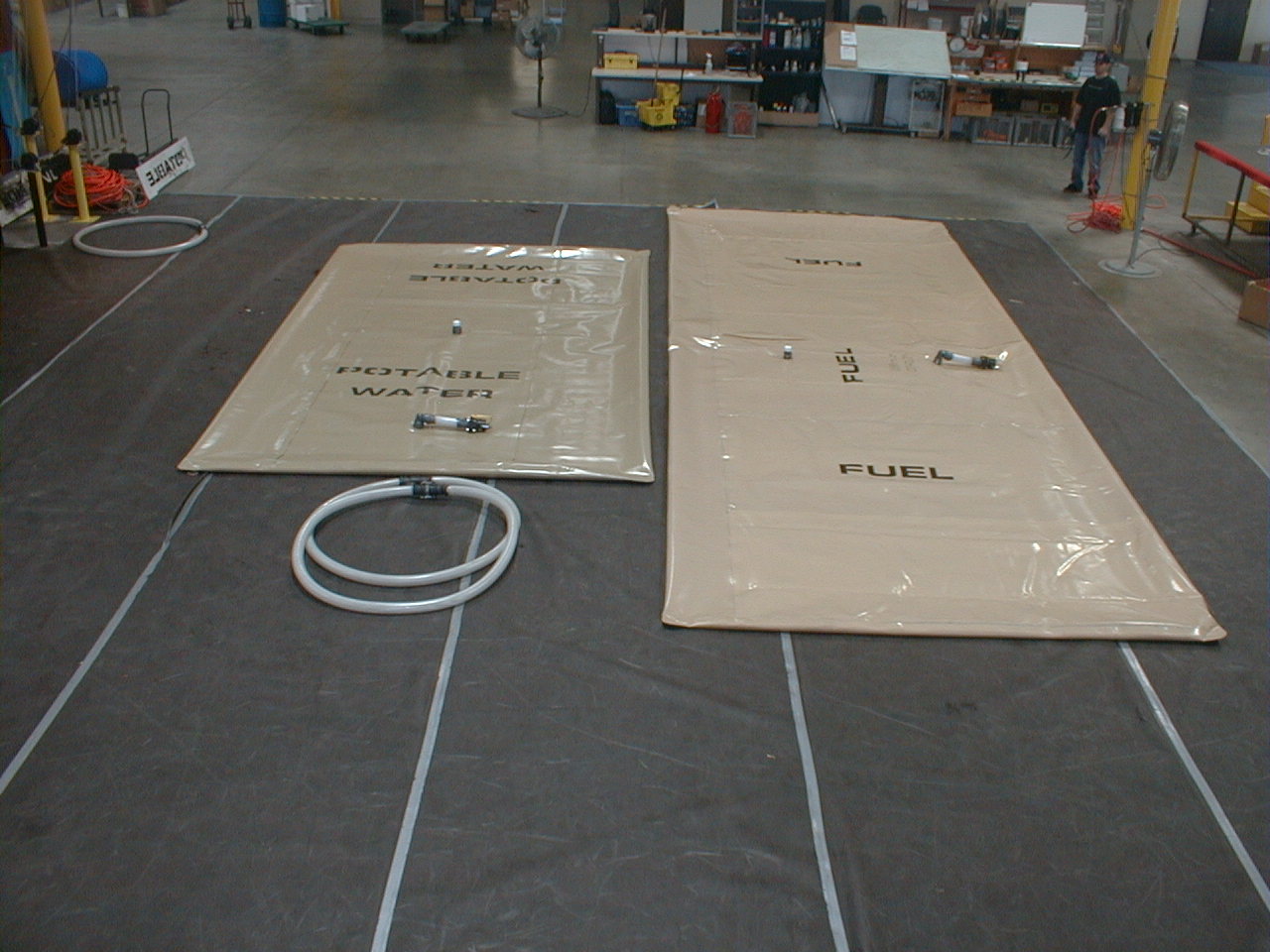

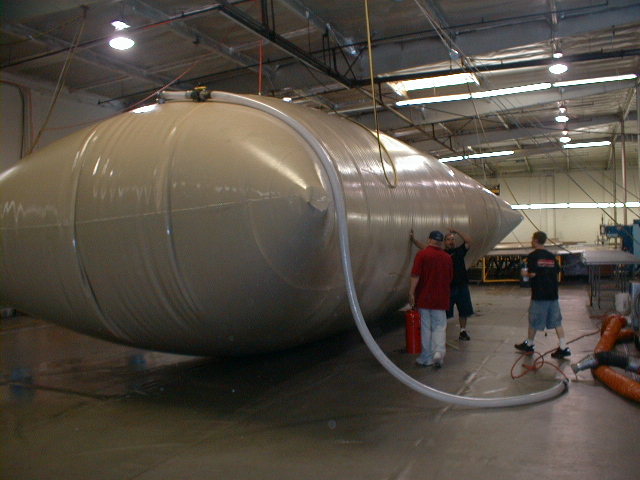

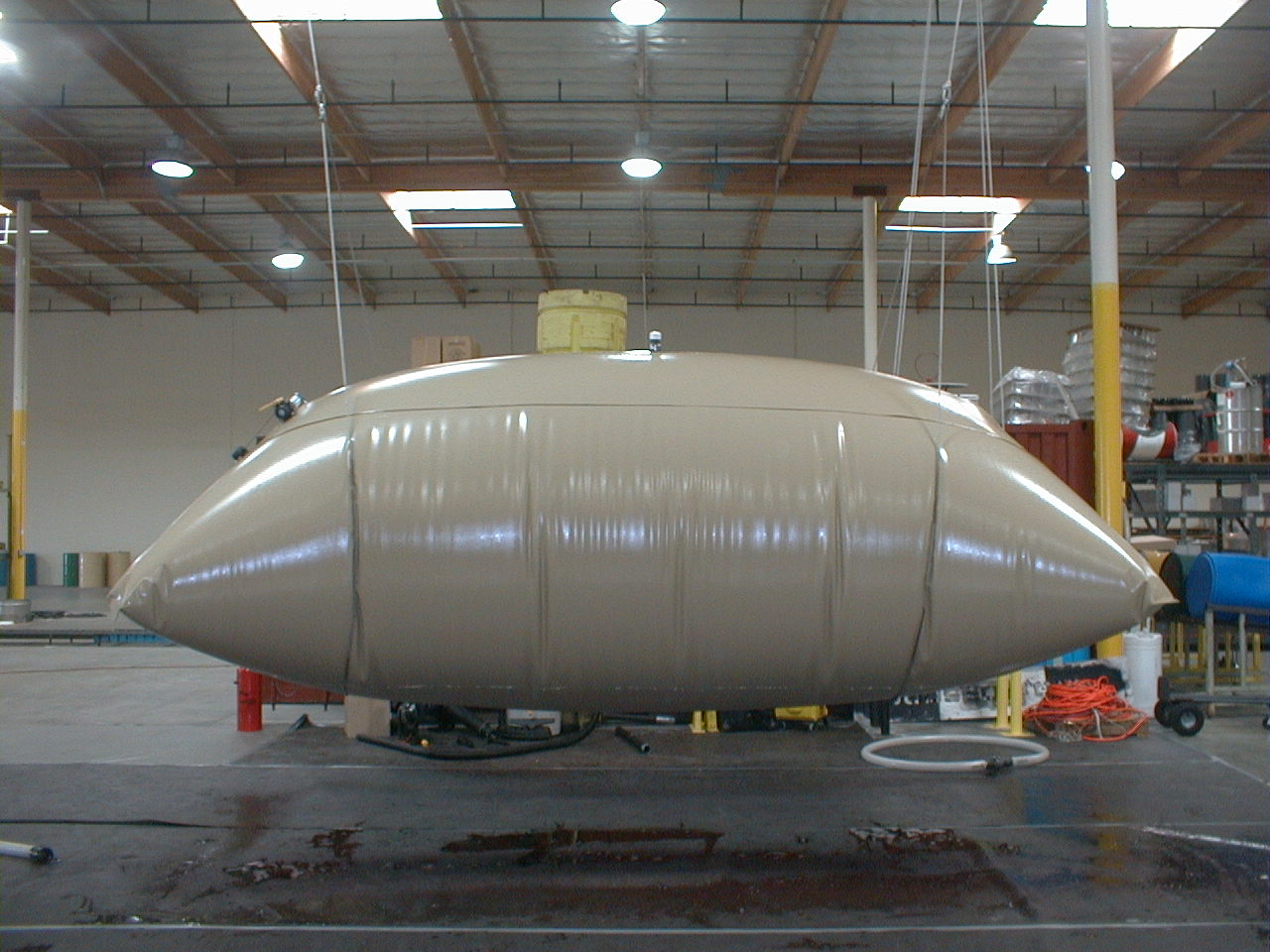

Custom vessel tanks photographed on the Saint production floor during fill, pressure test, and final fitting checks — the build and proof sequence every marine tank goes through before installation.
04 Images — Click to Enlarge
